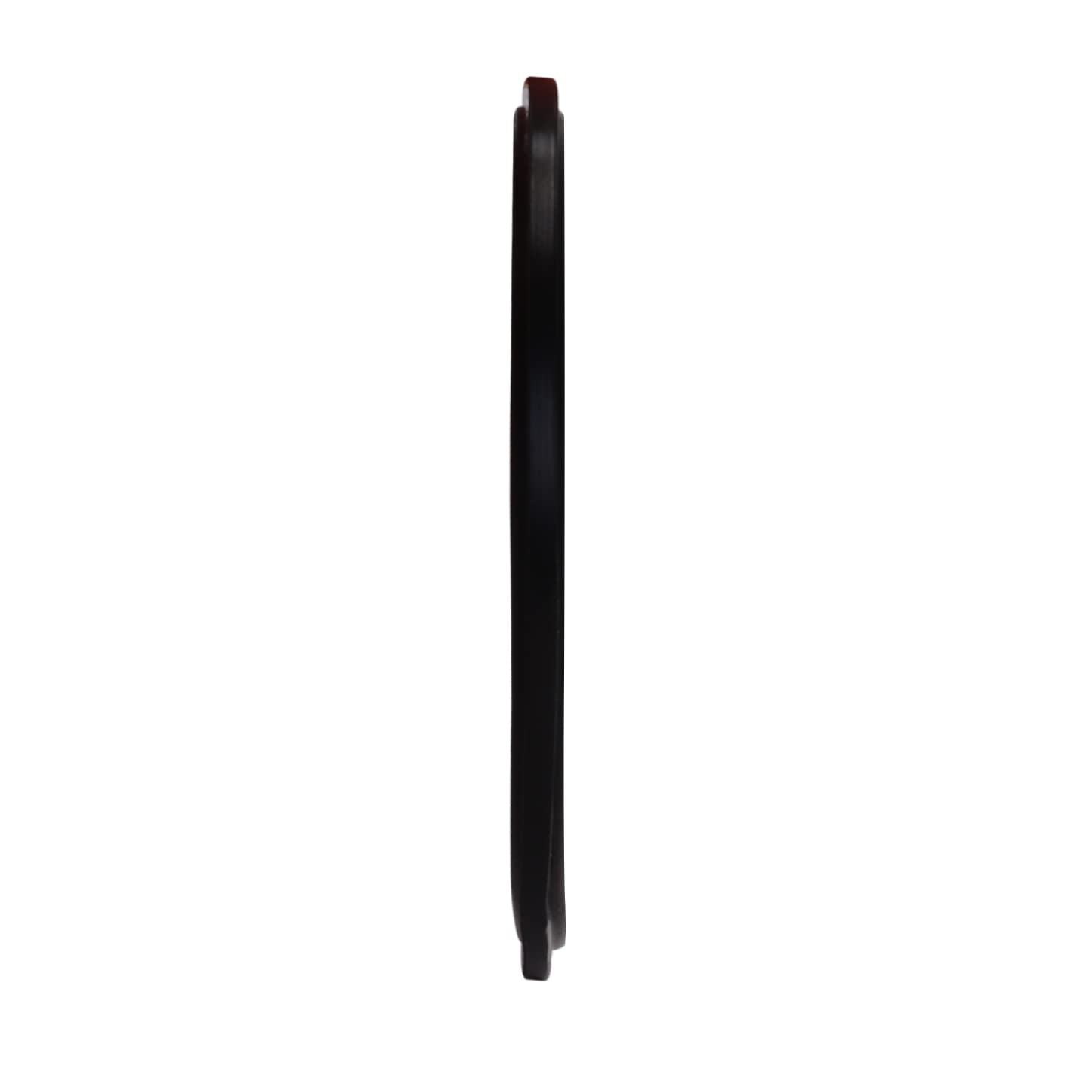

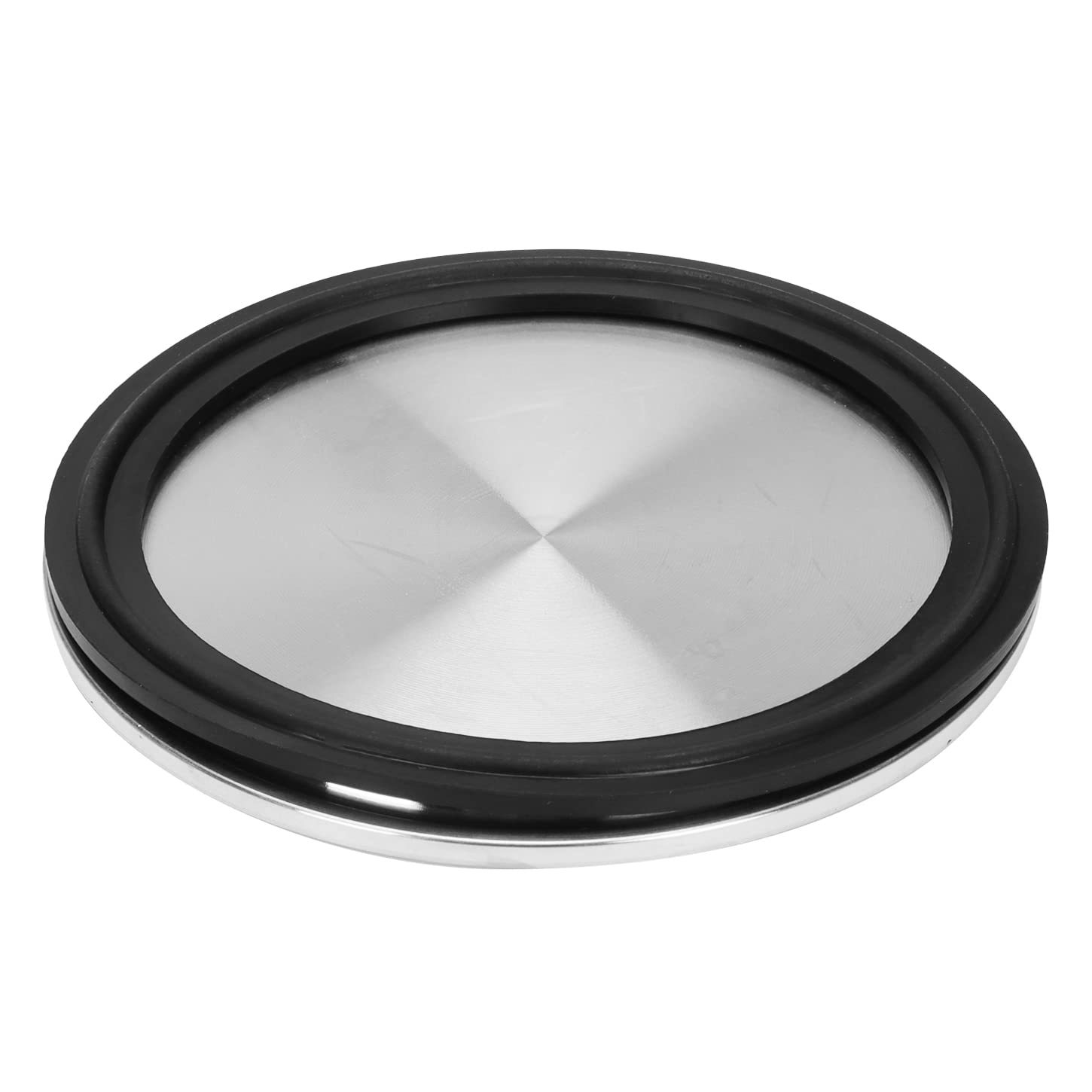

6" Tri Clamp Buna-N (NBR) Sanitary Gasket Fits Tri-Clover Type Ferrule

Name: 6" Tri Clamp Buna-N (NBR) Sanitary Gasket Fits Tri-Clover Type Ferrule
Brand: DERNORD
SKU: BOCO-20943
Price: 13.0 USD
Availability: InStock

$13.00

~~$13.00~~ $13.00

Sale Sold out

Tax included. Shipping calculated at checkout.

color Black

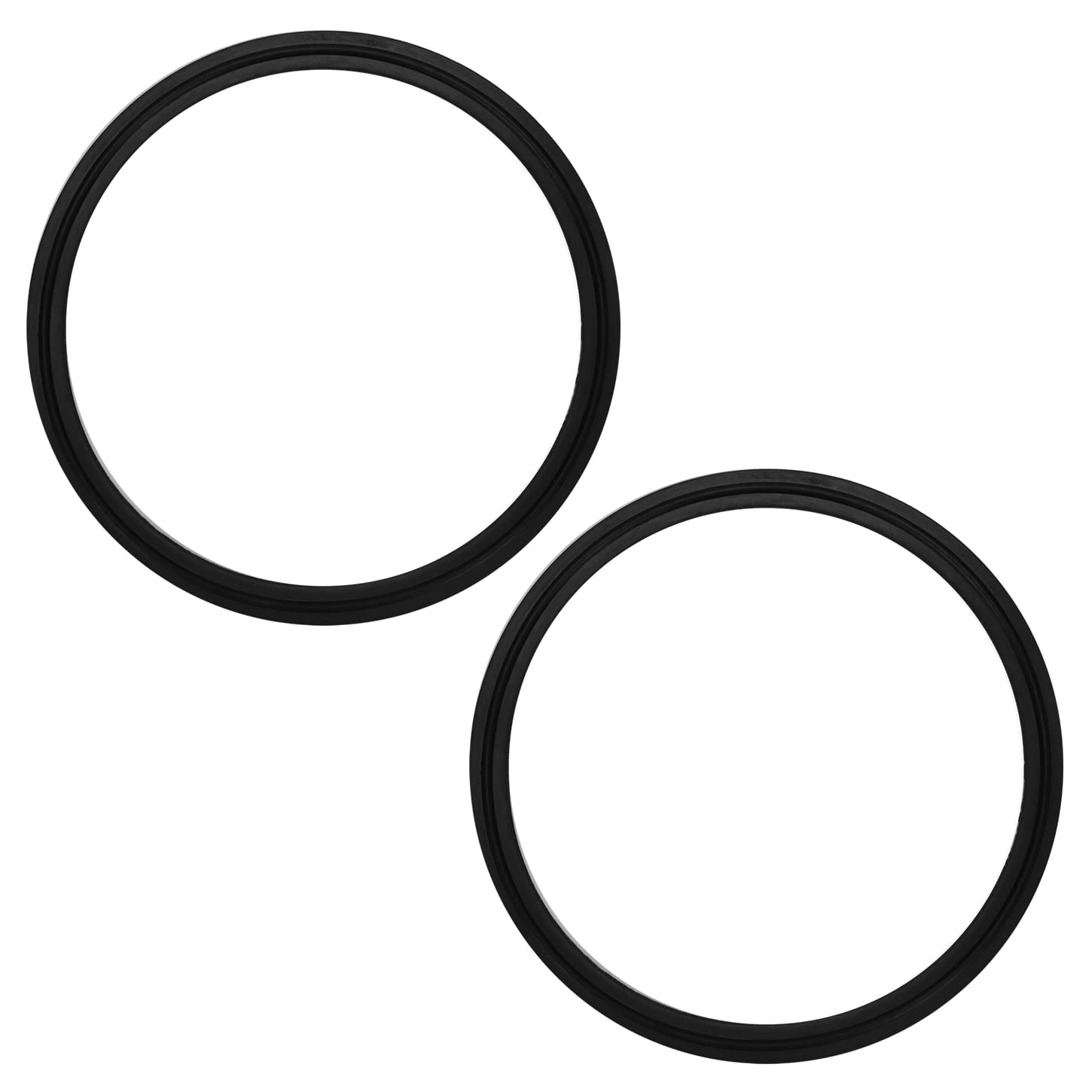

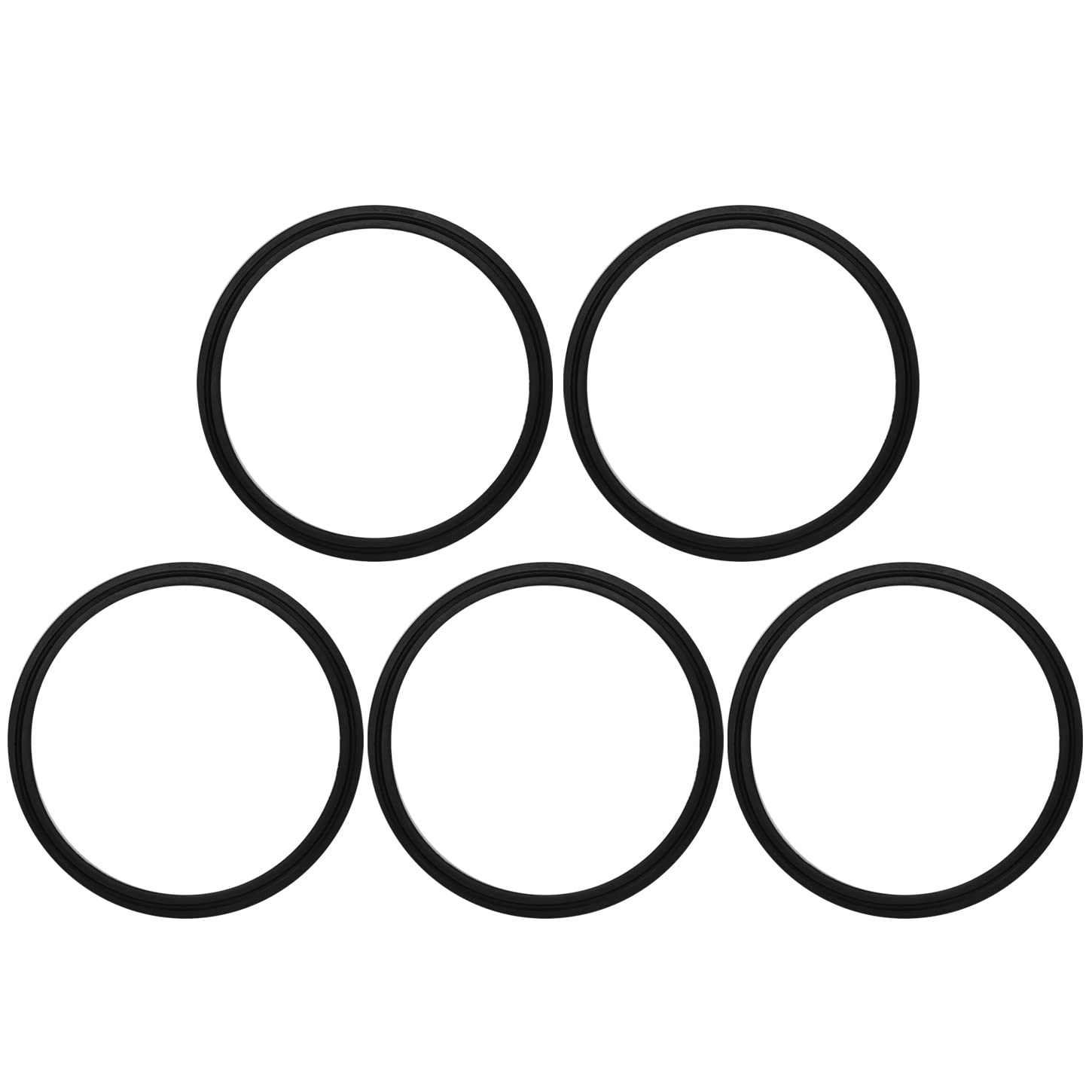

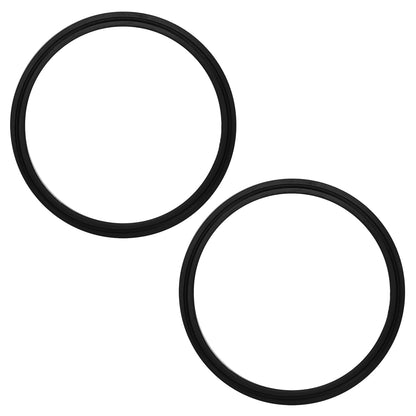

size Pack of 2 Pack of 5

Product variants

Quantity

About the item

Buna-N gaskets fit standard 6" tri-clover or tri-clamp fittings, apply to Pipe Outer Dia: 152mm / 6"

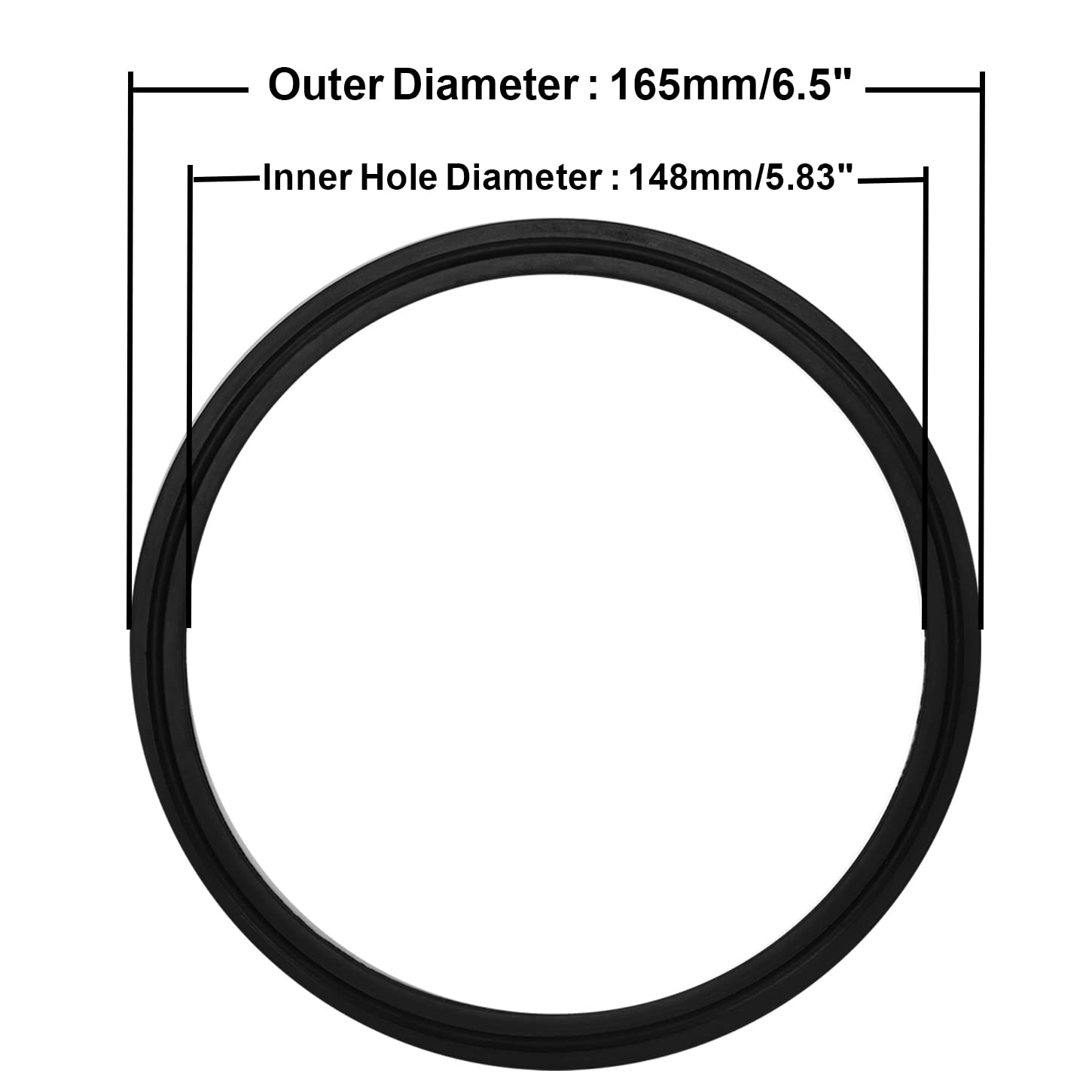

Outer Diameter :165mm / 6.5"
Inner Hole Diameter : 148mm / 5.83"
Temperature Rating (spec): -35° - 250°F
Made from food grade material black Buna-N (NBR)

Other information

Fit for : 6" Tri-Clamp

Apply to Pipe Outer Dia : 152mm / 6"

Inner Hole Dia(Approx) : 148mm / 5.83"

Outer Dia : 165mm / 6.5"

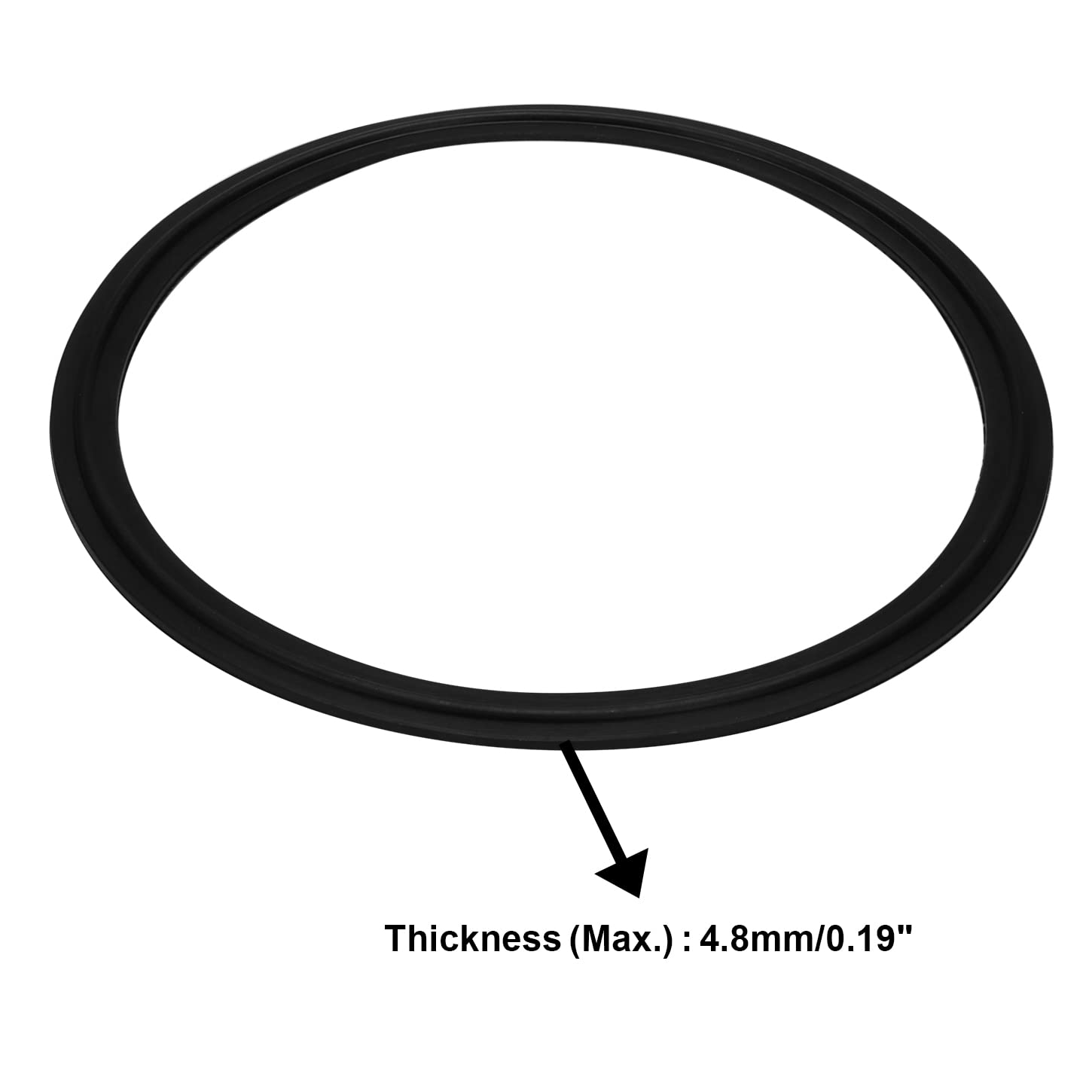

Thickness (Max.) : 4.8mm / 0.19"

These quality Nitrile Butadiene Rubber gaskets are for Tri-Clamp style fittings. Good mechanical properties and high wear resistance NBR. Good resistance to many petroleum oils, greases, hydraulic fluids, alcohol, mineral oil, and grease. These tri clamp NBR gaskets have good compression set characteristics, but have a limited temperature range ( -35° - 250°F) which precludes their use in many applications, primarily steam.

Tri Clamp NBR Gaskets are widely used in pressure washer, filter, pump, water hose, plumbing pipe, garage maintenance, automobile mechanical and much more
